Public IoT: Smart Street Light for Moving Object
Winter Semester 2018/2019
Nabilah Binti Salehuddin (65634)

4.3 Software Dokumentation

1) Network sharing of client and server

ESP32 and the user connects using the device to the same network HIT-FRITZBOX-7490. The implementation was already prepared and only needed to be used appropriately and then tested sufficiently. For this the purpose, the server will  use the handle "WiFi.begin(ssid, password)" to connect to existing network. This function is activated during ESP32 startup and connection is established as soonn as it can find existing network. However if there is no existing network found after 10 seconds , ESP32 will be restarted.

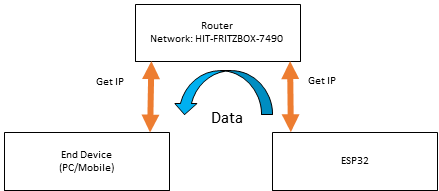

Figure 4.3.1: Connection between microcontroller and device via same network on router

2) Obtaining IP Address to open server and client connection

The connection between client and server is only possible using the IP Address of the server that will be used by the client after. The local IP Address obtained will then be used to establish the connection between them.

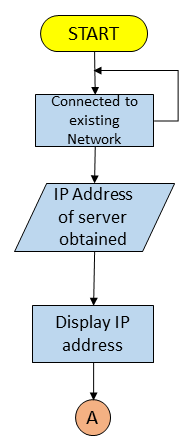

Figure 4.3.2: IP Address Declaration

3) Opening and closing connection between server and client

When user has obtained the displayed IP, they need to open the web browser and key-in the respective address. The "Connect" and "Disconnect" button on the browser will determine whether the Web Socket client is connected or disconnected from the server or not. For establishing connection between client and server, client needs to send Websocket handshake request and server will send response for this request. Only then will any of the messages can be exchanged between each other.  Once user click on "Disconnect" button, the connection between server and client will be ended.

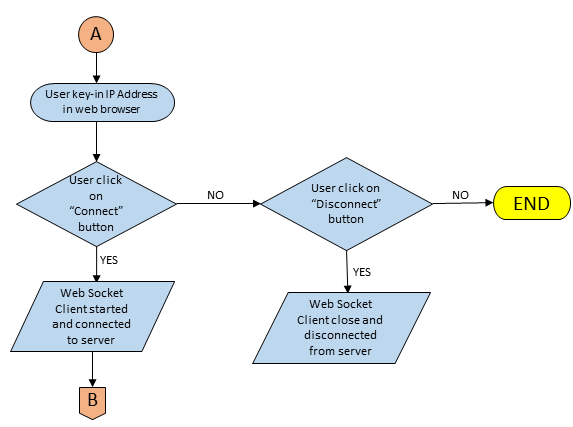

Figure 4.3.3: Establishment of connection between Web Socket and server

4) Obtaining LDR value reading and displaying on browser

Using analogRead for LDR value, the light intensity can be acquired and displayed on the web browser. First, there are 3 condition of analog reading of light dependant resistor(LDR) and for each condition they will send the data to the client using handle "webSocketServer.sendData". The client that receive this message will theN call the function "onMessage(evt)" in main HTML under the letter "L" according to the value of "L" that they received from server. Finally, the level of light intensity will then can be displayed on the browser.

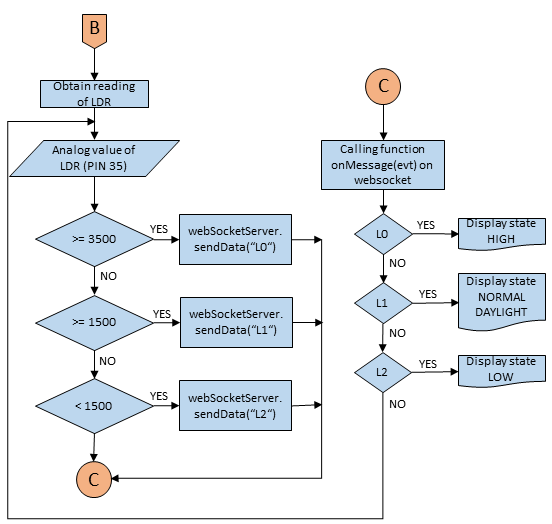

Figure 4.3.4: Flow on getting LDR value and displaying for client

5) Obtaining PIR sensor reading and displaying on browser

The process is similar to LDR value reading only digitalRead is used to get PIR sensor reading in order to determine whether there is motion or not using value "0" or "1". The rest of the action is quite similar with LDR but using message with letter "P" for PIR sensor and only has 2 conditionfor the state of motion.

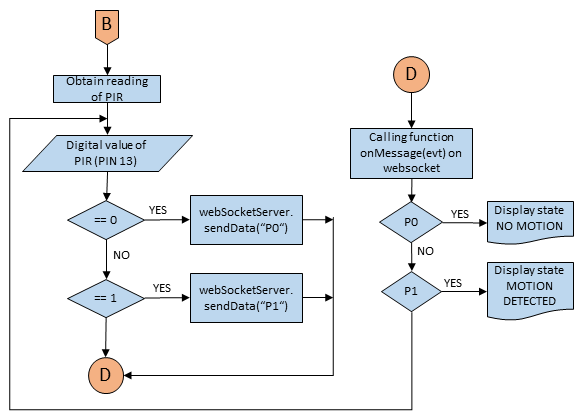

Figure 4.3.5: Flow on getting PIR sensor reading and displaying on client

6) Manual switching of lamp

To call the manual mode for lamp switching, here Case 'S' condition is used. There are 2 condition which is "1" and "0" which stands for light on and off respectively.  Under function "LampOn()" and "LampOff()" in the HTML, action of sending message from the client to the server using "doSend_buffered("S:")" with either value is established. When client send message "0" under"LampOff()" function or "1" under function "LampOn()"  to the server, the server will then receive the message under case "S" and act accordingly to the value the receive from client and the lamp will turn on/off physically.

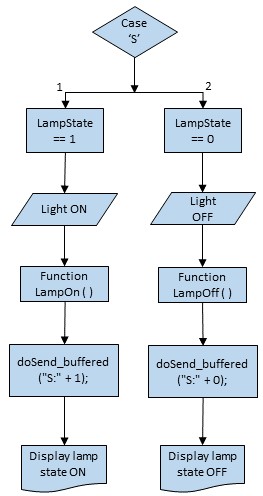

Figure 4.3.6: Flow on manually switching on/off the lamp

7) Automatically switching lamp based on motion and light intensity

Once the client is connected to the server, the data of LDR and PIR will both be obtained and the lamp will automatically switched on/off according to the condition given as below. If the condition shown is fullfilled, the lamp will be turned on. Otherwise it will switch off. This data will be send to the client under handle "webSocketServer.sendData" and the physical state of the lamp will be displayed under the handle using letter "A". The client will then act accordingly for case when letter "A" message is received from the server.

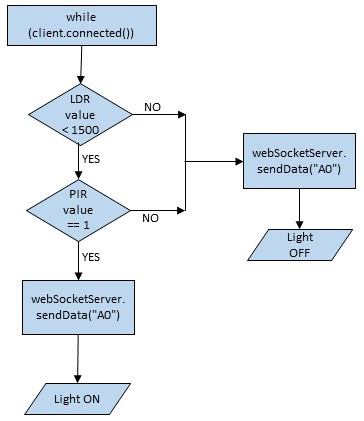

Figure 4.3.7: Flow on automatically switching on/off the lamp
