IOT for Home Automation by Browser
Winter Semester 2018/2019
Ong Kai Li (65631)

3.3 Morphology

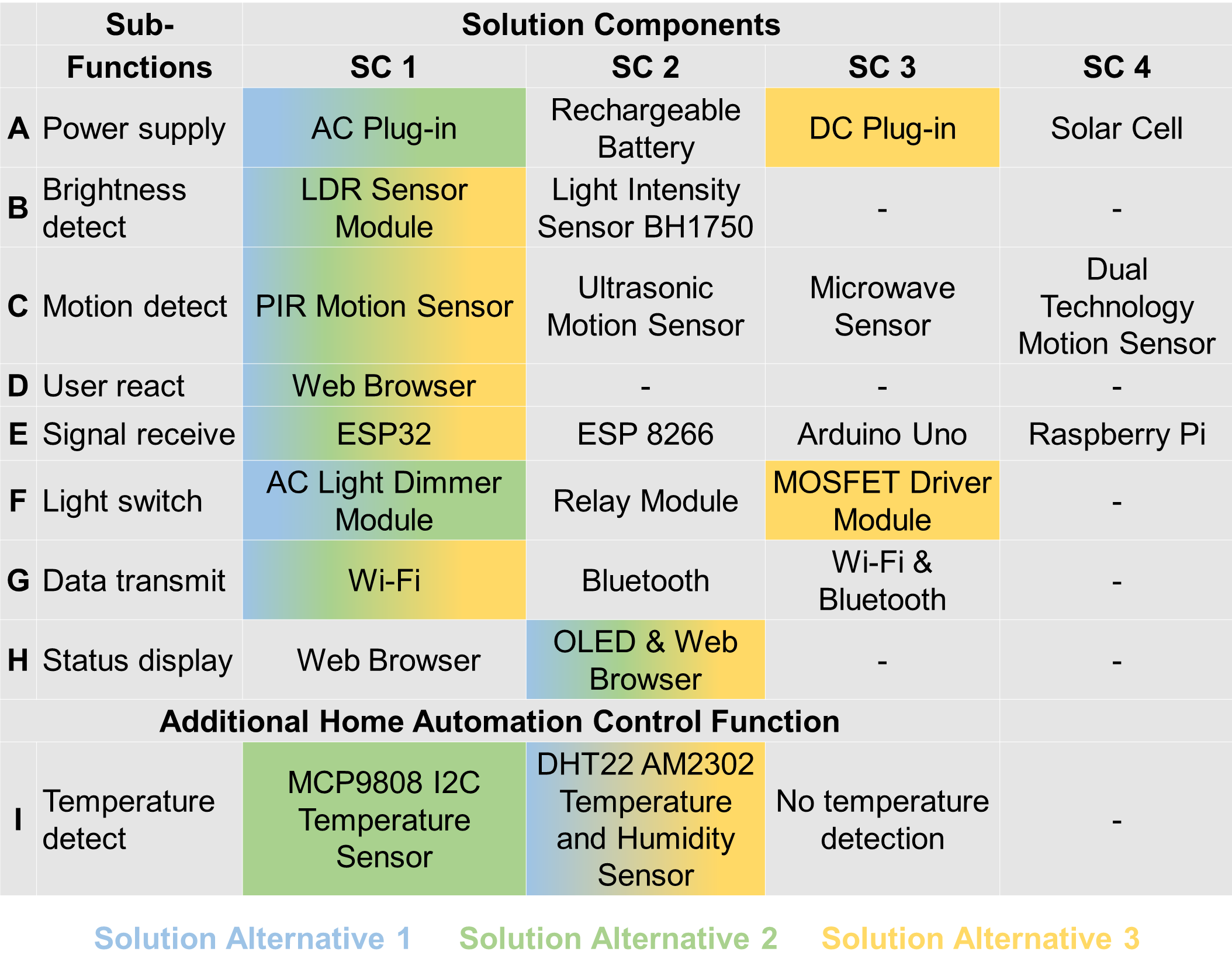

  Sub- Solution Components
  Functions SC 1 SC 2 SC 3 SC4
A Power supply AC Plug-in Rechargeable Battery DC Plug-in Solar Cell
B Brightness detect LDR Sensor Module Light Intensity Sensor BH1750 - -
C Motion detect PIR Motion Sensor Ultrasonic Motion Sensor Microwave Sensor Dual Technology Motion Sensor
D User react Web Browser - - -
E Signal receive ESP32 ESP 8266 Arduino Uno Raspberry Pi
F Light switch AC Light Dimmer Module Relay Module MOSFET Driver Module -
G Data transmit Wi-Fi Bluetooth Wi-Fi & Bluetooth -
H Status display  Web Browser OLED & Web Browser - -
Additional Home Automation Control Function
I Temperature detect DHT22 AM2302 Temperature and Humidity Sensor MCP9808 I2C Temperature Sensor No temperature detection -
