Portbelegungsplan

Connection between STM32F4Discovery Board and STM32F4DIS-WIFI

STM32F4Discovery port pin

 physical pin on f4discovery physical connector on f4discovery

STM32F4DIS-WIFI module pin number

PA2

 14 P1

J6-pin 3

PA3

 13 P1

J6-pin 5

GND

 1 P2

J6-pin 11

GND

 2 P2

J6-pin 12

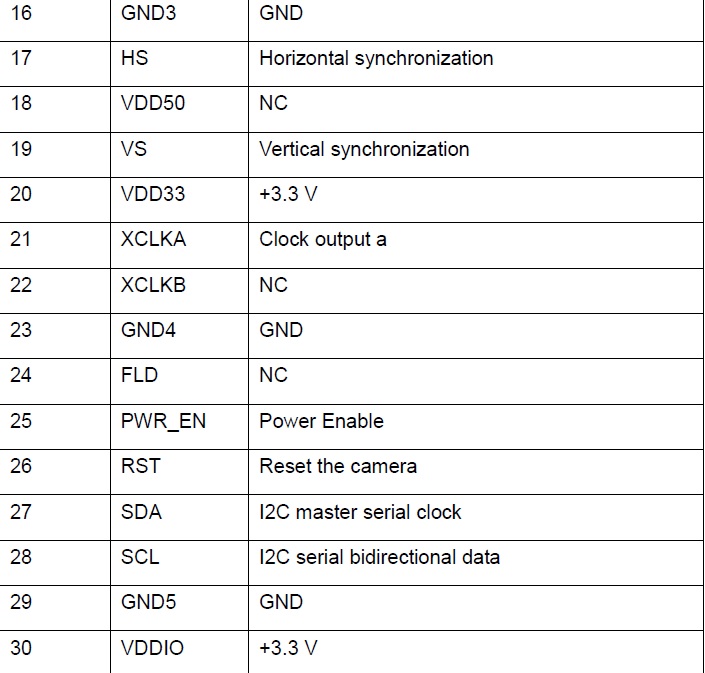

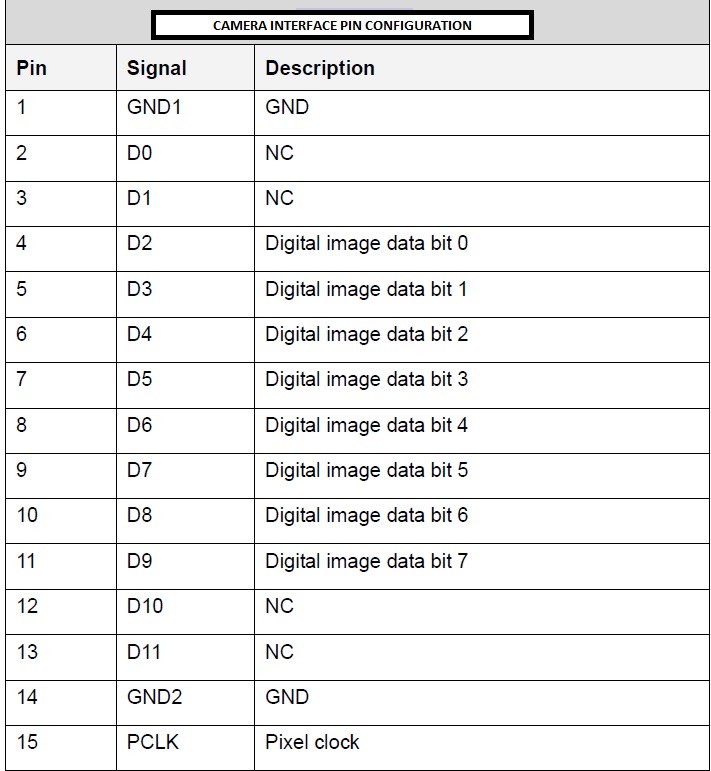

Connection between STM32F4Discovery-Baseboard and STM32F4-CAM board
